Flat slide valves VEG Standard

The welded construction flat slide valve VEG is ideal for shut-off, metering, as well as for the infeed and discharge of dry, free-flowing and abrasive, difficult bulk materials in critical application areas. Suitable as an emergency shut-off or repair gate valve in discharge devices, such as rotary valves or screws conveyors.

Round or rectangular flanges – the welded construction offers you a maximum freedom in design for your specific requirement.

Product-advantages

    • Welded construction with maximum freedom in design
    • Dust- and product-tight shut-off of the passageway and to the atmosphere
    • ATEX-conforming execution optional, as per specified requirement
    • Available in sizes of approx. up to DN1200 (DIN) / 50” (ANSI)
    • Temperature ranges up to 500 °C without cooling, up to 1000 °C with cooling
    • Available with a wide range of housing materials (all weldable steel and stainless steel materials, Hardox etc.)

    We would be pleased to give you advice

    ____________________

    on the solution that fits your requirements the best.
    We will help you to determine the right components for you with a few parameter specifications.

    Get in touch with us!

    +49/2374-92 93 – 0
    info@schuette-is.com

    Actuation/ Drive

    • Hand wheel, crank
    • Chain wheel
    • Electro-pneumatic
    • Electro-pneumatic with positioner
    • Electro-motoric

    Options

    • Intermediate positions for metering
    • Ex-protection of cylinder, solenoid valve, limit switch and junction box
    • Non-stick coatings
    • Special flanges
    • ATEX certificates on request

    Technical data

    NOMINAL SIZE DN 100 – DN 1200
    FLANGE DIN PN6/PN 10, ANSI 150 Lbs, oder auf Anfrage
    HOUSING Steel oder stainless steel
    To the materials =>>
    GATE/DISC Stainless steel
    To the materials =>>
    SEAL Plastics, Elastomere, Metallic
    To the materials =>>



    Technical data without guarantee. Customised design (voltage, power, speed, protection class, etc.) can be implemented.

    PROJEcTs

    Flachschieber VEG 450

    Flat slide valve in welded construction VEG

    DN 450 with elektro-pneumatic actuator

    Additional versions

    Knife gate valve ZFT16_DN400_EC200a >> Knife gate valve ZFT

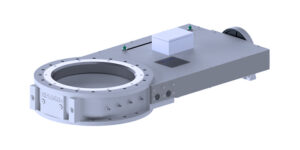

    Flat slide valve ZFB DN500 KR >> Flat slide valve ZFB
